Protection map from the Squad Wiki: coloured by what penetrates, at close range and a neutral angle.

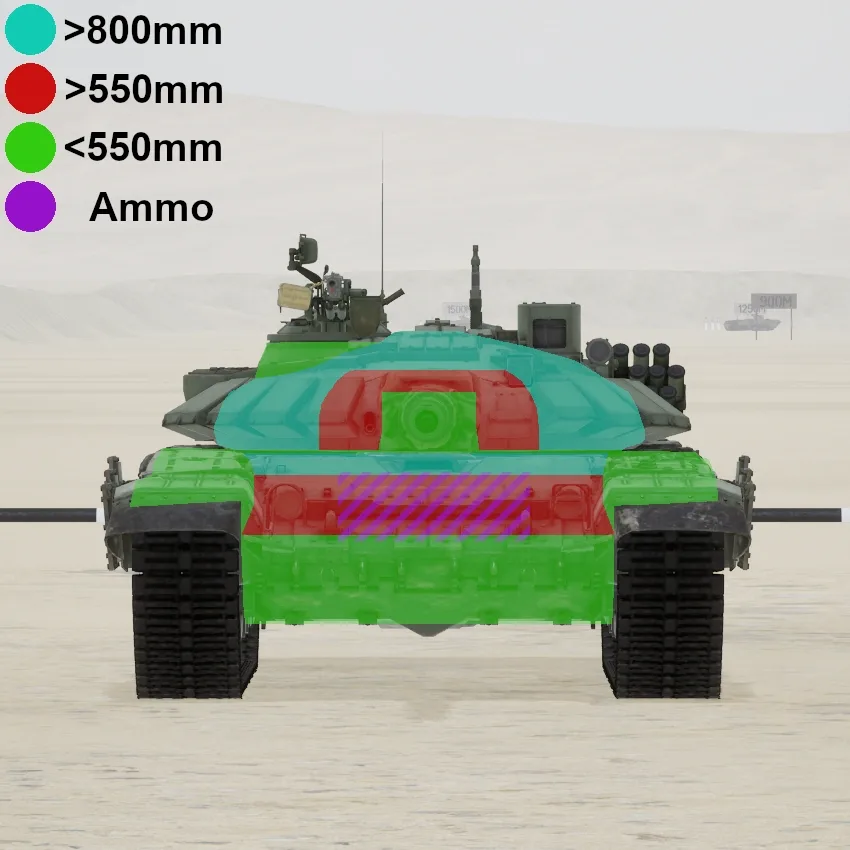

T-72S protection map: T-72B3
T-72B3.png, Squad Wiki, CC BY-SA 4.0

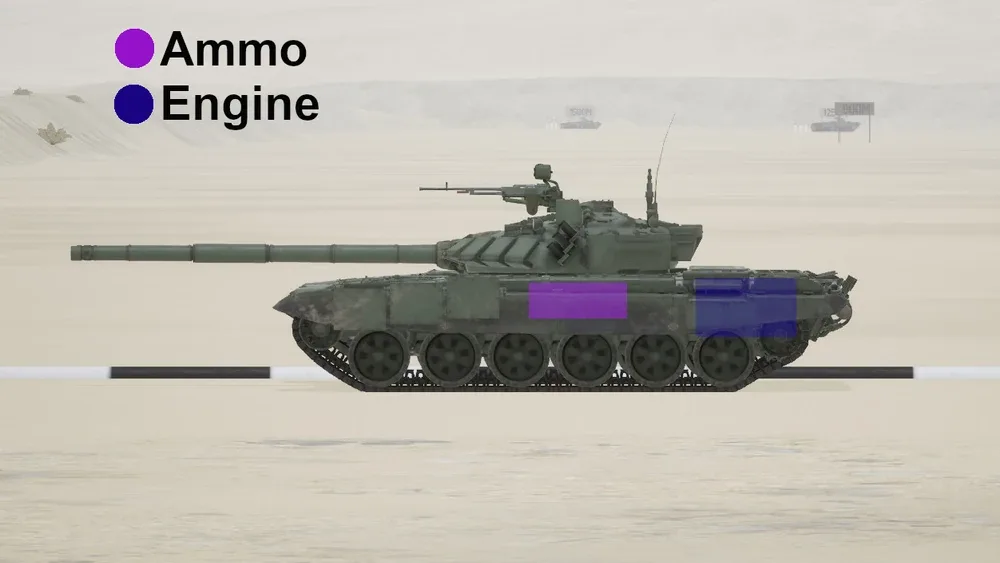

T-72S protection map: T-72B3s
T-72B3s.png, Squad Wiki, CC BY-SA 4.0

Protection map of "T-72B3 / S" at close range and neutral angle. Shooting from angles may affect armor values. For reliable penetration at most angles aim for "<550mm". T62 (115 mm cannon) can only penetrate "<550mm". NOTE: Physical mesh does not align with visual mesh.

Interactive 3D armour replaces this once the vehicle has been exported from the Squad SDK.
